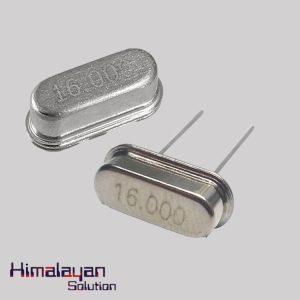

The 16 MHz Crystal Oscillator Module is that is designed to handle off-chip crystals which has a frequency of 4-16 MHZ. It is applicable for electronic and DIY projects.
Specifications:
Name
16 MHz Crystal Oscillator Module
Nominal Frequency
16,000,000 Hz
Load Capacitance
18pF
Frequency Tolerance
± 30ppm
Frequency Temperature Stability
±50ppm
Resonance Resistance
40ohms Max
Osc mode
Fundamental Mode
Shunt Capacitance
<7pF
Drive Level
< 100ȝW
Operating Temperature Range
-20°C To + 70°C
Operable Temperature Range
-25°C To + 85°C
Storage Temperature Range
-55°C To + 125°C
Insulation Resistance
500 M ohms
Aging
± 5ppm Per Year
Marking
Q+16B000+DateCode+LotCode
