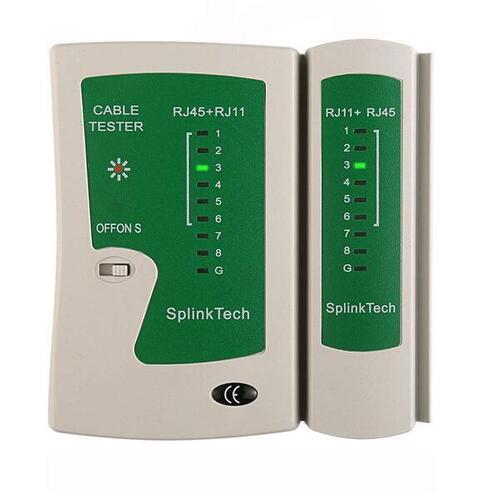

LAN Network Cable Tester

1. Tests shielded (STP) or unshielded (UTP) LAN cables
2. Automatically detect a good connections, opens, short, crossover.
3. The lights of the main tester will turn on sequentially from 1 to G.
4. Detachable remote tester, test remote cable up to 1000ft. in length.
OFF/ON/S Switch
ON – Is a normal test speed
S – Slow down the speed of the flashing light
Off – Is to turn off the tester
Network Cable Tester for RJ45 Network Cable & RJ11 RJ12 Telephone cable
RJ45 Cable Test:
Please insert the network cable into both the socket of the main unit and a remote unit.
If this cable is a good connection,
The lights of both the main tester and remote unit will light up sequentially from 1 to 8,
Namely,
Main Tester: 1-2-3-4-5-6-7-8
Remote Tester: 1-2-3-4-5-6-7-8
Above is for Unshielded cable
G light – Is for shielded cable, the lights will light up from 1 to G Namely,
Main Tester: 1-2-3-4-5-6-7-8-G
Remote Tester: 1-2-3-4-5-6-7-8-G
Easy to Carry
This compact cable tester is an easy-to-use tester that saves time and money on the job.
The portable handheld design makes this easy to use.
Even if the cable is pre-installed it can be tested with a detachable part.
Error Free Operation
Complete error-free operation with DC detecting anode and cathode determination, ringing signal detecting open, short, and cross circuit testing.
Power Source: DC9V Battery Required (not included), But Does Not Work Under DC7V
