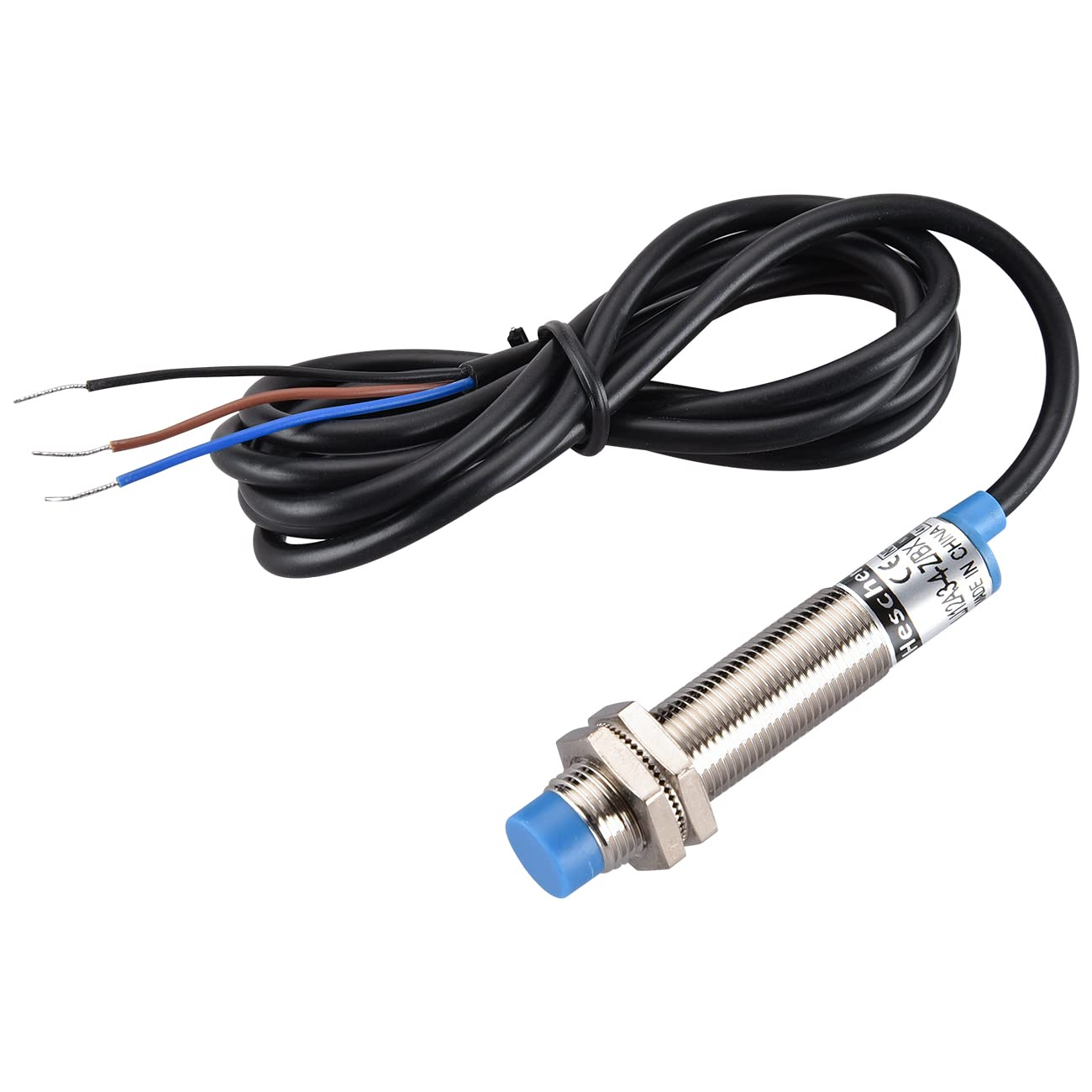

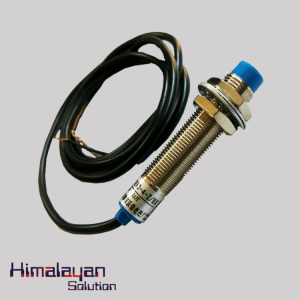

Proximity Switch

The Proximity Switch is an Inductive Proximity Sensor Detection Switch with PNP normally open transistor switch, also known as Inductive sensor or metal sensor. It operates within a power supply voltage range of DC 6V to 36V. This Switch Module contains high frequency oscillations, a detection circuit, an amplifier circuit, a circuit solution, and an output circuit. It can be widely used in various applications like: – Automatic control industry for detection, controlling and non-contact switching, Paper making, Light industry for limiting station, Orientation taking count and many more.

Specificaitions:

Name

Proximity Switch

Output Type

PNP NO(Normal Open)

Detecting Distance

4 mm

Supply Voltage Range

DC 6 V to 36 V

Output Current

300 mA

Detect Object

Iron

Column Sensor Diameter

10.4 mm / 0.4 inch

Thread Diameter

12 mm / 0.5 inch

Wire Type

Cylindrical DC 3 Wire Type (Black, Brown, Blue)

Switch Appearance Type

Cylinder Type

Theory

Inductive Sensor

Response Frequency

0.5 KHz

Operating Temperature

‐25°C to 55°C (Non‐freezing Condition)
